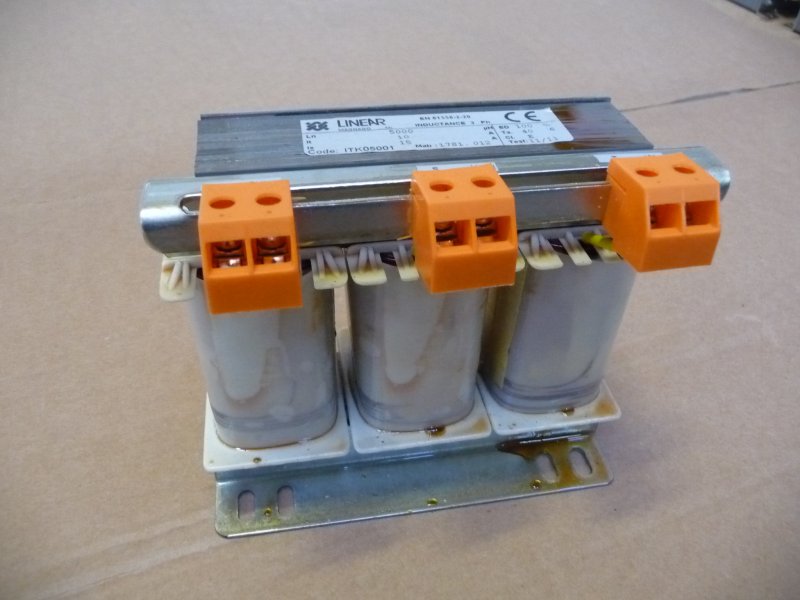

REACTANCES SINGLE PHASE AND THREE PHASE

CONFORMI A NORME  EN 61558-2-20  EN 60289

constructive characteristics:

  • Norms CEI
  • Protection IP 00
  • Class isolation and for over temperaure max 75°C with ambient temperature of 45° max



Executions on specific demand for

  • Levelling:
  • Filter
  • Starter
  • Limitations of d.c.
  • Circulation
  • Commutation




















REATTANZE AVVIAMENTO MOTORE
Potenza HP Larghezza mm Prof. mm Altezza mm Peso Kg
5 150 85 145 3.6
10 180 105 165 6.7
15 180 115 165 8.5
20 180 125 165 10.5
25 180 135 165 13
30 180 135 165 14
40 240 135 220 18
50 240 145 220 22.5
60 240 155 220 25
75 240 175 220 31
100 300 170 280 36
125 300 180 280 42
150 300 200 280 47
180 300 200 280 50
200 300 225 280 52
250 360 210 350 59
300 360 225 350 69

NOTE: I dati riportati non sono impegnativi e LINEAR SRL si riserva di apportare opportune modifiche o migliorie
